Siemens Explosion-Proof Air Compressor Skid – 5 HP – 3-Phase Induction Motor – USA

ReflowX SKU: REF-1180

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

ReflowX
Equipment code

CFIHOS-30000524

Get Quotation Whatsapp

Short Description

Skid-mounted air compressor system equipped with a Siemens explosion-proof 5 HP high-efficiency induction motor and integrated filtration components. Built for industrial hazardous area applications.

Description

Siemens Explosion-Proof Air Compressor Skid – 5 HP – 3-Phase Induction Motor

Description:

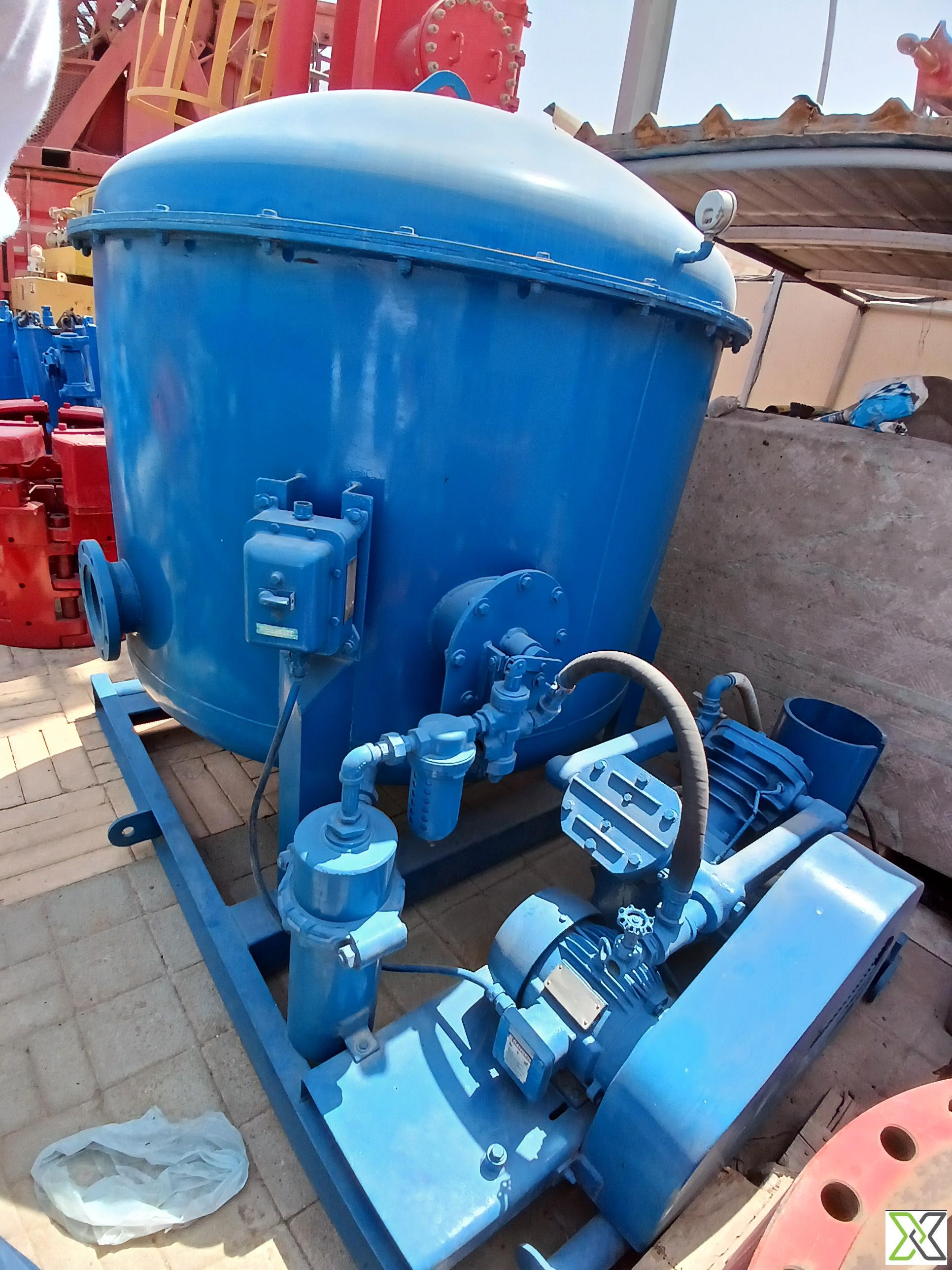

This industrial air compressor unit is mounted on a steel skid and powered by a Siemens explosion-proof motor. The electric motor is a 3-phase induction type, offering high efficiency and reliability for continuous-duty industrial use. It includes oil filters, a pressure gauge, a Siemens starter panel, and is compliant with hazardous location ratings.

The compressor is paired with a heavy-duty horizontal receiver tank with a dome lid and bolted assembly for ease of inspection and maintenance. Its entire structure is painted in industrial-grade blue and is suitable for oil & gas, manufacturing, and heavy-duty applications requiring reliable compressed air in classified zones.

Specifications:

– OEM: Siemens
– Equipment: Skid-Mounted Horizontal Receiver Tank with Compressor

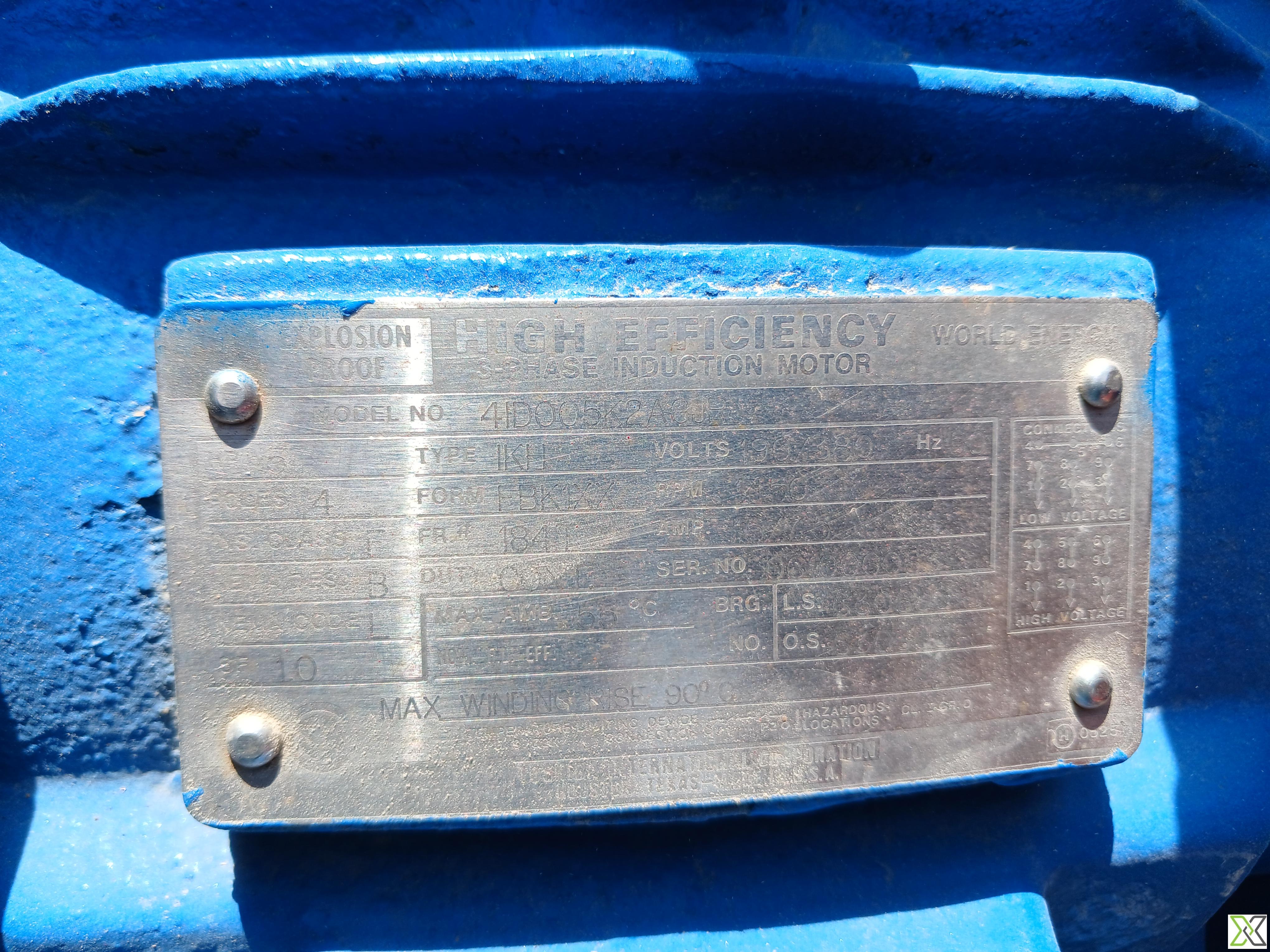

– Motor Type: 3-Phase Induction Motor
– Horsepower: 5 HP
– Model No: 4ID006300-HW02
– Voltage: 230/460V
– Frequency: 60 Hz
– Amperage: 11.4/5.7 A
– Frame: 184T
– Insulation Class: B
– Hazardous Location Code: Class 1, Group D
– Enclosure Type: Explosion-Proof
– Winding Temp: 90°C Max
– Skid Includes:
– Horizontal Dome-Top Pressure Tank
– Dual Filter Units
– Pressure Gauge & Fittings
– Oil-Free Air Compressor Pump

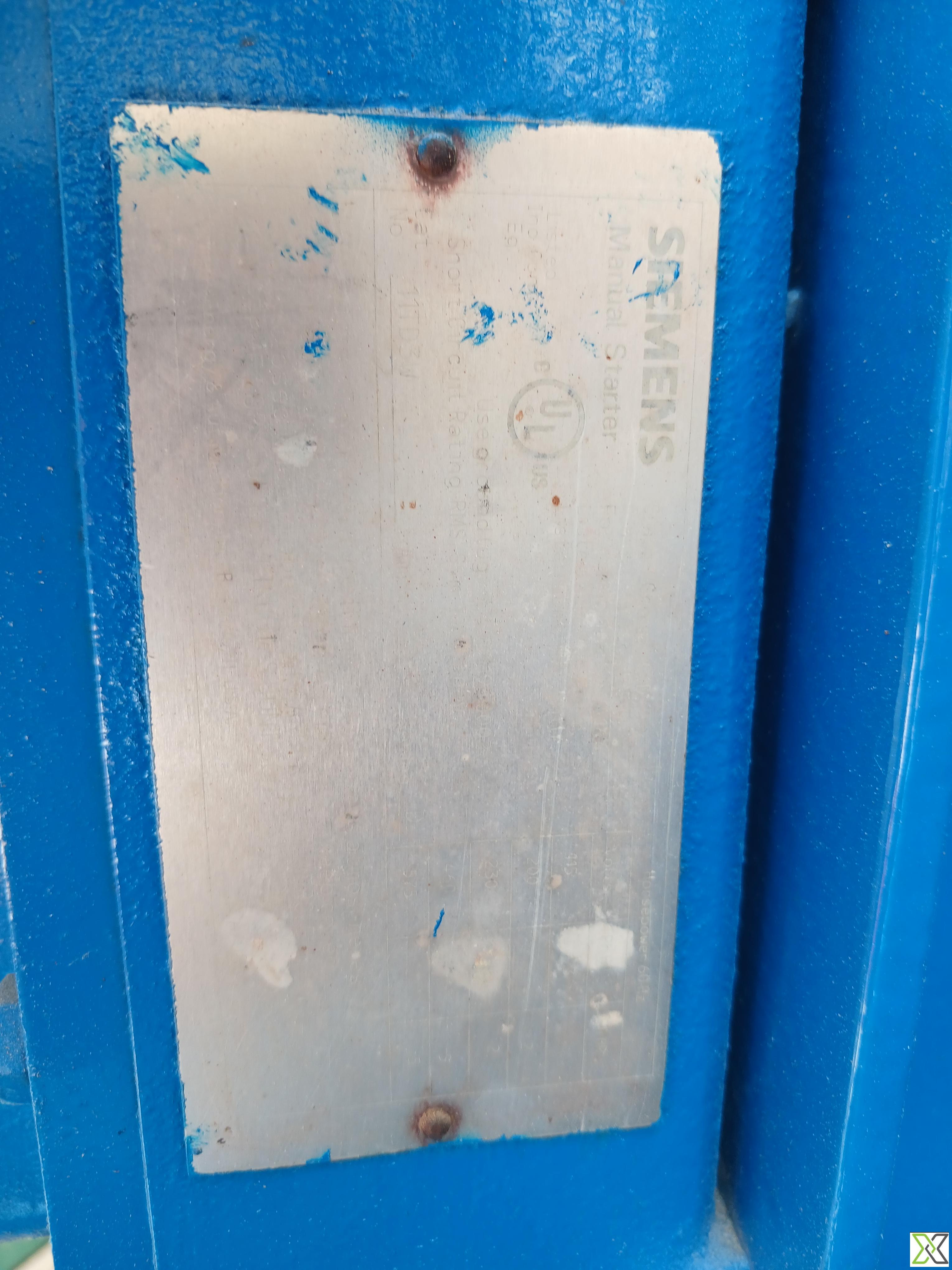

– Siemens Manual Starter Panel
– Origin: U.S.A.
– Application: Oil & Gas / Industrial / Hazardous Areas
– Paint: Industrial Blue Epoxy
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	4ID006300-HW02
Year of Manufacturing	Siemens
Model Number	4ID006300-HW02
Year of Manufacturing	Siemens
Color	Blue
ISO 15926 Pt 4	7459
PCA RDS Code	RDS14286497
CFIHOS ID	CFIHOS-30000524
IFC Class	IfcCompressor
Fluid Name	Air
Explosion Protection Gas Group	Group D
Explosion Protection Temperature Class	T3
Explosion Protection Zone	Zone 1
Test Medium	Dry Air or Nitrogen
Test Pressure	1.5 × Working Pressure
UNSPSC Code	40151600
Lower Limit Design Outlet Temperature	0°C
Lower Limit Operating Suction Pressure	~0.8 bar
Upper Limit Design Outlet Temperature	120–150°C
Specific Heat Ratio Cp/Cv at Inlet	1.4
