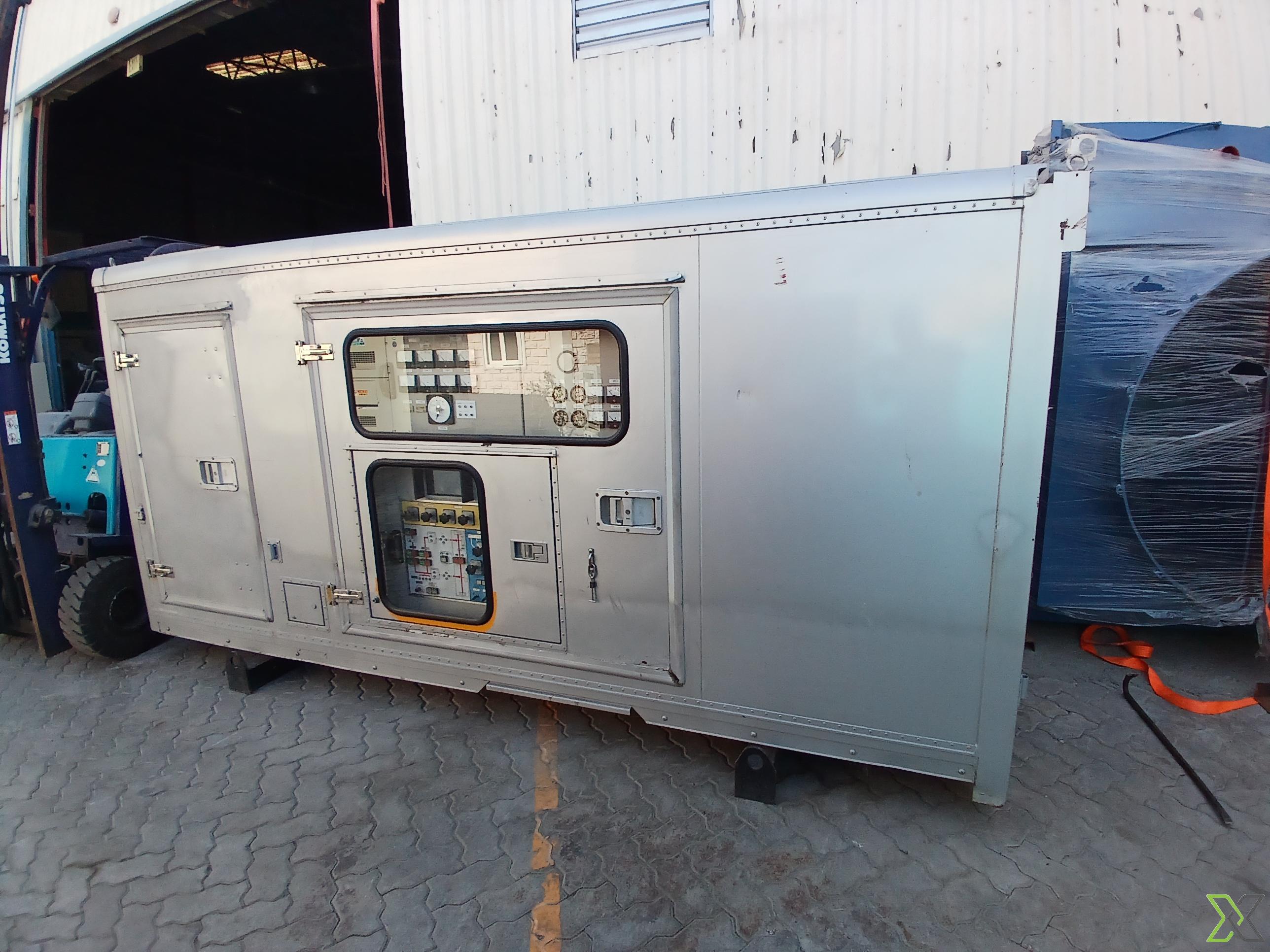

MEIDEN E-AF (Main Generator), E-AAT (Excitation Generator) Brushless AC Generator

ReflowX SKU: REF-611

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

株式会社明電舎 (Meidensha Corporation)
Equipment code

Power Generation

Get Quotation Whatsapp

Short Description

Brand: MEIDEN Model: E-AF (Main Generator), E-AAT (Excitation Generator) Type: Brushless AC Generator (フラシなし交流発電機) Manufacturer: 株式会社明電舎 (Meidensha Corporation) Serial Number: UK4896 Year of Manufacture: November 2008

Description

General Features

Standard Compliance: JEC-2130-2000 (Japanese Electrotechnical Committee Standard for rotating electrical machinery)

Design: Synchronous, brushless, single-bearing system with integrated excitation source

Applications: Heavy-duty power generation, particularly suited for rail, marine, or defense sector integration

Cooling Method: Air-cooled

Coupling Configuration: Direct-coupled with prime mover (engine or turbine)

Voltage Regulation: Via excitation control and AVR (external, if applicable)

Main Generator (E-AF) Specifications

Specification	Value
Rated Output	125 kVA
Voltage	210 V
Frequency	50 Hz
Speed	1500 rpm
Current	300 A
Power Factor	80%
Excitation Current	24.9 A
Excitation Voltage	53 V
Insulation Class	F
Weight	525 kg

Excitation Generator (E-AAT) Specifications

Specification	Value
Rated Output	3.5 kVA
Voltage	63.9 V
Frequency	150 Hz
Poles	12
Excitation Voltage	28.2 V
Excitation Current	13.7 A
Insulation Class	F
Standard	JEC-2130-2000

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Height	900 mm
Width	700 mm
Length	1,200 mm
Weight	525 kg
Output Power	125 kVA
Height	900 mm
Width	700 mm
Weight	525 kg
Temperature Range	-20°C to +45°C
Voltage	(E-AF): 210 V
Output Power	125 kVA
Speed	1500 RPM
Direction of Rotation	Clockwise
Design Specification	JEC-2130-2000
Normal Operating Temperature	Up to 45°C
Explosion Protection Gas Group	Not applicable
Explosion Protection Temperature Class	Not applicable
Explosion Protection Zone	Not applicable
Lower Limit Operating Temperature	-20°C
Operation Continuous Intermittent	Continuous Duty
Upper Limit Operating Temperature	45–50°C
Number Of Shafts	single rotating shaft system
Test Medium	Electrical Load Bank
Test Pressure	Not applicable
Turbine Cycle	Not applicable
Insulation Class	Class F
