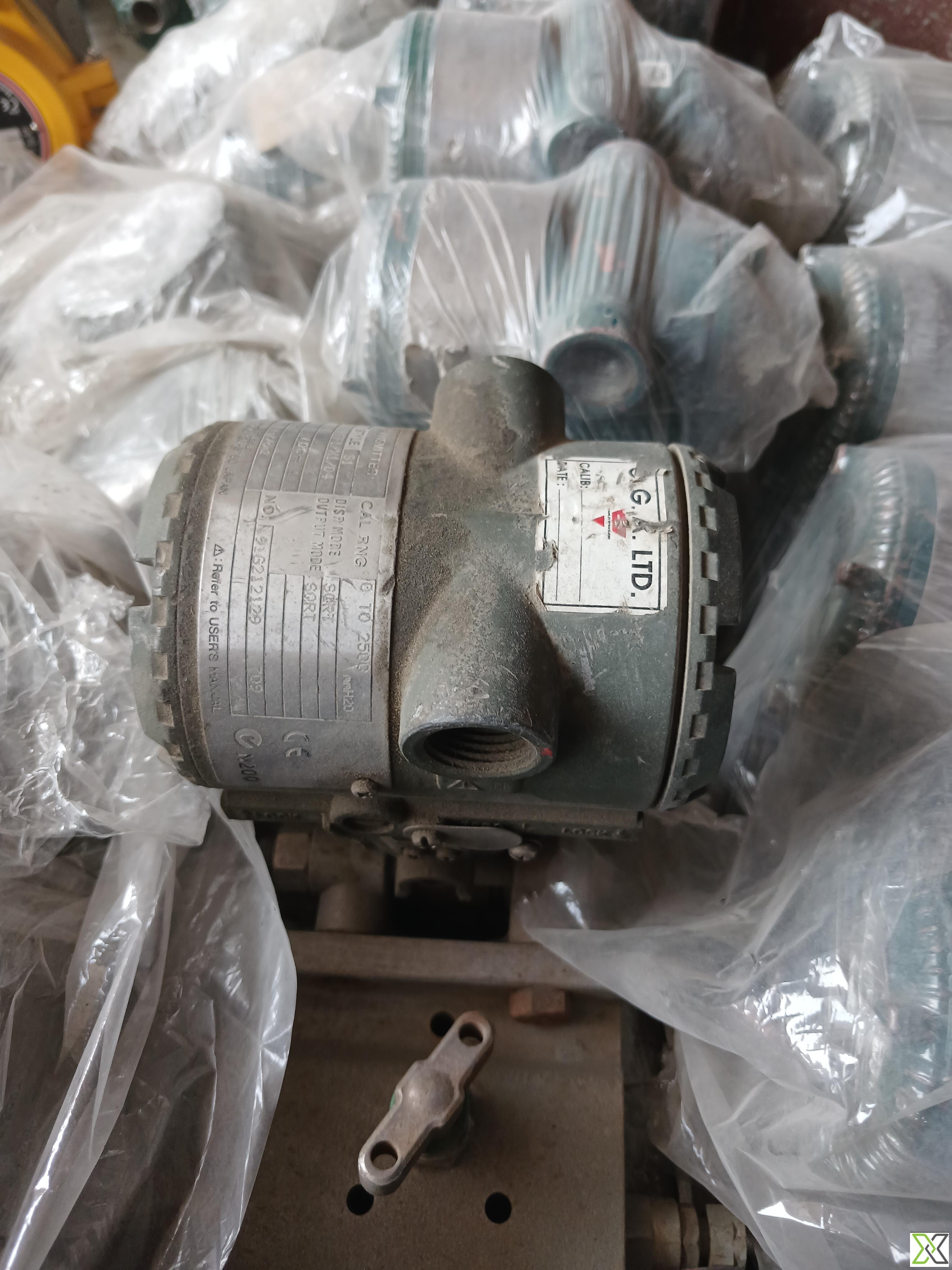

Yokogawa EJA110A Differential Pressure Transmitter – DPharp Smart Series

ReflowX SKU: REF-8068

Product Details

Quantity

40
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Yokogawa Electric Corporation (Japan)
Equipment code

CFIHOS-30000654

Get Quotation Whatsapp

Short Description

The Yokogawa EJA110A differential pressure transmitter offers exceptional accuracy and stability for measuring differential pressure in various industrial applications. With a 4–20 mA DC output and digital communication capabilities, it provides reliable and precise measurements for process control.

Description

Product Overview
• Product Name: Differential Pressure Transmitter
• Model: EJA110A
• Series: DPharp Smart Transmitter
• Manufacturer: Yokogawa Electric Corporation
• Country of Manufacture: Japan
• Manufacturing Address: Tokyo 180-8750, Japan
• Serial Number: SG212H2P
• Suffix Code: ES4A / FF7N / 917NN
• Communication Protocol: HART (Highway Addressable Remote Transducer)

Measurement & Calibration
• Measurement Type: Differential Pressure (DP)
• Calibrated Range: −100 to +100 kPa (or as per customer specification)
• Reference Accuracy: ±0.04% of span (standard)
• Stability: ±0.1% of URL per 10 years
• Static Pressure Limit: Up to 16 MPa (depending on flange rating)

Output & Signal
• Output Signal: 4–20 mA DC with digital communication (HART)
• Power Supply Voltage: 10.5 to 42 VDC
• Load Resistance: 250–600 ohms (based on supply voltage)

Sensor & Technology
• Sensor Type: Digital Resonant Silicon Sensor (DPharp)
• Overpressure Limit: 2× Maximum Working Pressure (MWP)
• Temperature Effect on Accuracy: ±0.1% URL per 28°C

Response Time
• Nominal Response Time: ≤ 150 ms (based on configuration)

Electrical & Construction
• Electrical Connection: 1/2" NPT Female (standard)
• Housing Material: Aluminum Alloy (standard) or SS316 (optional)
• Process Wetted Parts: Hastelloy C-276 or Stainless Steel Diaphragm
• Flanges: 316 SS or optional alloys
• Mounting: 2" pipe mounting via standard bracket

Environmental Conditions
• Ambient Temperature: -40°C to +85°C (without LCD), -30°C to +80°C (with LCD)
• Process Temperature: -40°C to +120°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 0–100% RH (non-condensing)
• Ingress Protection: IP66 / IP67, NEMA 4X

Explosion Protection
• Explosion-Proof & Intrinsically Safe Options
• Certification Options: ATEX, IECEx, FM, CSA (based on suffix code)

Physical Dimensions
• Weight: Approx. 3.9 kg (without mounting bracket)
• Process Connection: 2" flange center-to-center, ANSI or DIN compatible

For further specifications or to inquire about this equipment and ReflowX's logistics services, please contact: info@reflowx.com

Technical Details

Model Number	EJA110A
Manufacturer Name	Yokogawa Electric Corporation (Japan)
Height	289 mm
Width	282 mm
Length	229 mm
Weight	3.9 kg
Color	Polyurethane paint
Output Power	4–20 mA DC with digital communication
