IMI ORTON MV DN200MM Automated Butterfly Valve – CF8M Body, Stellite Seat, with Fisher DVC6200 & Solenoid Valve

ReflowX SKU: REF-5943

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

ReflowX
Equipment code

Get Quotation Whatsapp

Short Description

High-performance ON/OFF automated butterfly valve assembly by IMI ORTON (Italy), featuring a CF8M stainless steel body, Stellite GR.21 seat, and integrated Fisher DVC6200 digital positioner and solenoid valve, suitable for gas service at extreme temperatures.

Description

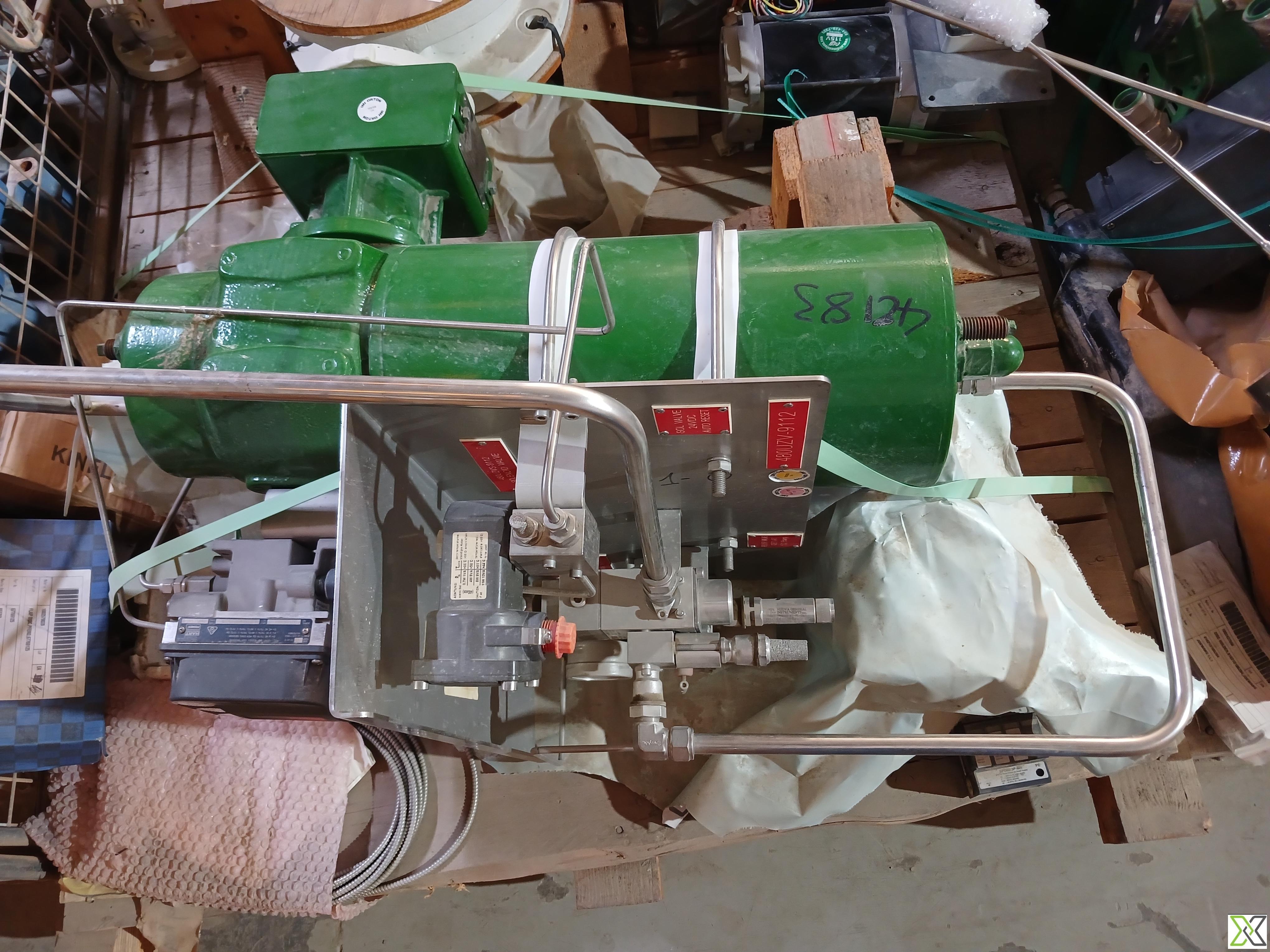

IMI ORTON MV DN200MM Automated Butterfly Valve – CF8M Body, Stellite Seat, with Fisher DVC6200 & Solenoid Valve
Description:

The IMI ORTON MV DN200MM Automated Butterfly Valve Assembly is a premium, high-performance flow control solution engineered for gas applications operating in extreme temperature environments. Built with a CF8M cast stainless steel body, Stellite GR.21 seat, and XM19 shaft, the valve ensures durability and corrosion resistance. The A240 Tp.316 disc offers superior flow control, while the Fisher DVC6200 digital valve controller with HART communication enables precise positioning. A German-made solenoid valve complements the system for ON/OFF control logic. The assembly is compliant with ASME B16.5 Class 150 and is rated for service temperatures ranging from -50°C to 450°C.

Specification:

– Component: Butterfly Valve Assembly

Manufacturer: IMI ORTON (Italy)

Model / Type: MV DN200MM

Function: ON/OFF High-Performance Butterfly Valve

Design Standard: ASME B16.5 Class 150

Body Material: ASTM A351 CF8M (Stainless Steel)

Disc Material: ASTM A240 Tp.316

Shaft Material: ASTM A479 XM19

Seat Material: Stellite Grade 21

Application Fluid: GAS

Operating Temperature Range: -50°C to +450°C

Weight: 210 kg

Year of Manufacture: 2017

Serial Number: 170069-010-001

– Component: Solenoid Valve

Manufacturer: Likely German origin (label in German)

Voltage / Power Ratings:
• 1W @ 13V
• 4W / 5VA @ 35°C
• 8W / 9VA @ 95°C
• 0.7W / 1VA ≥66°C

Function: Solenoid actuation for ON/OFF control

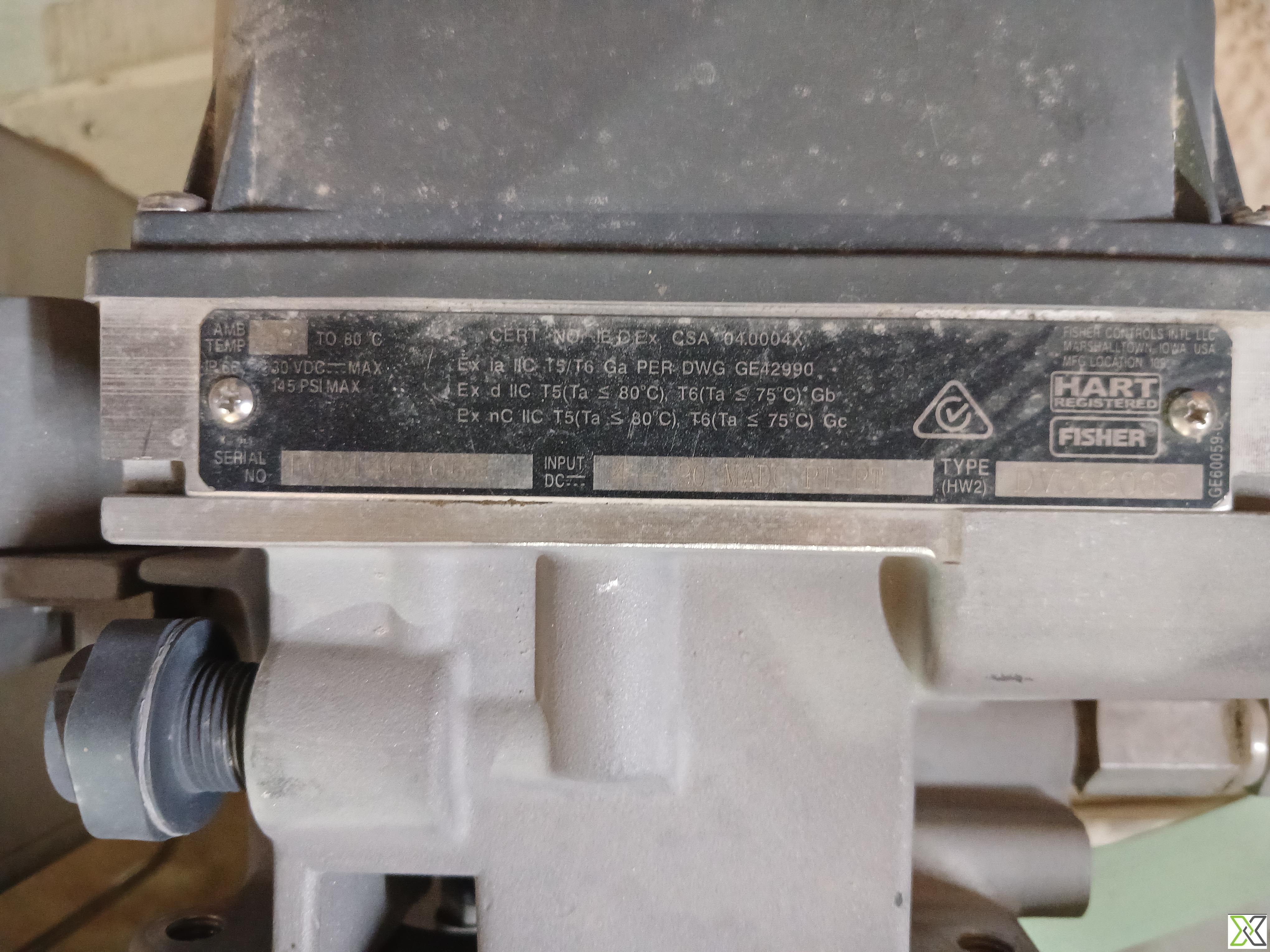

– Component: Positioner

Manufacturer: Fisher (Emerson)

Model / Type: DVC6200 (Type HW2)

Function: Digital Valve Controller with HART Protocol

Input: DC (specific input not listed)

Max Pressure: 145 PSI

Ambient Temperature Range: Up to 60°C

Certification: CSA Certified – Ex d, Ex nC

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	MV DN200MM
Manufacturer Name	IMI ORTON (Italy)
Height	780 mm
Width	350 mm
Length	70 mm
Weight	65–80 kg
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Failure Action	Fail-Closed or Fail-Open
Fluid Name	Natural Gas, Fuel Gas, Inert Gases, and Process Vapors
Full Opening Valve	Yes
Nominal Diameter	8 inches
Normal Operating Pressure	285 psi
Normal Operating Temperature	-50°C to +450°C
Piping Class	Class 150
UNSPSC Code	40141600
