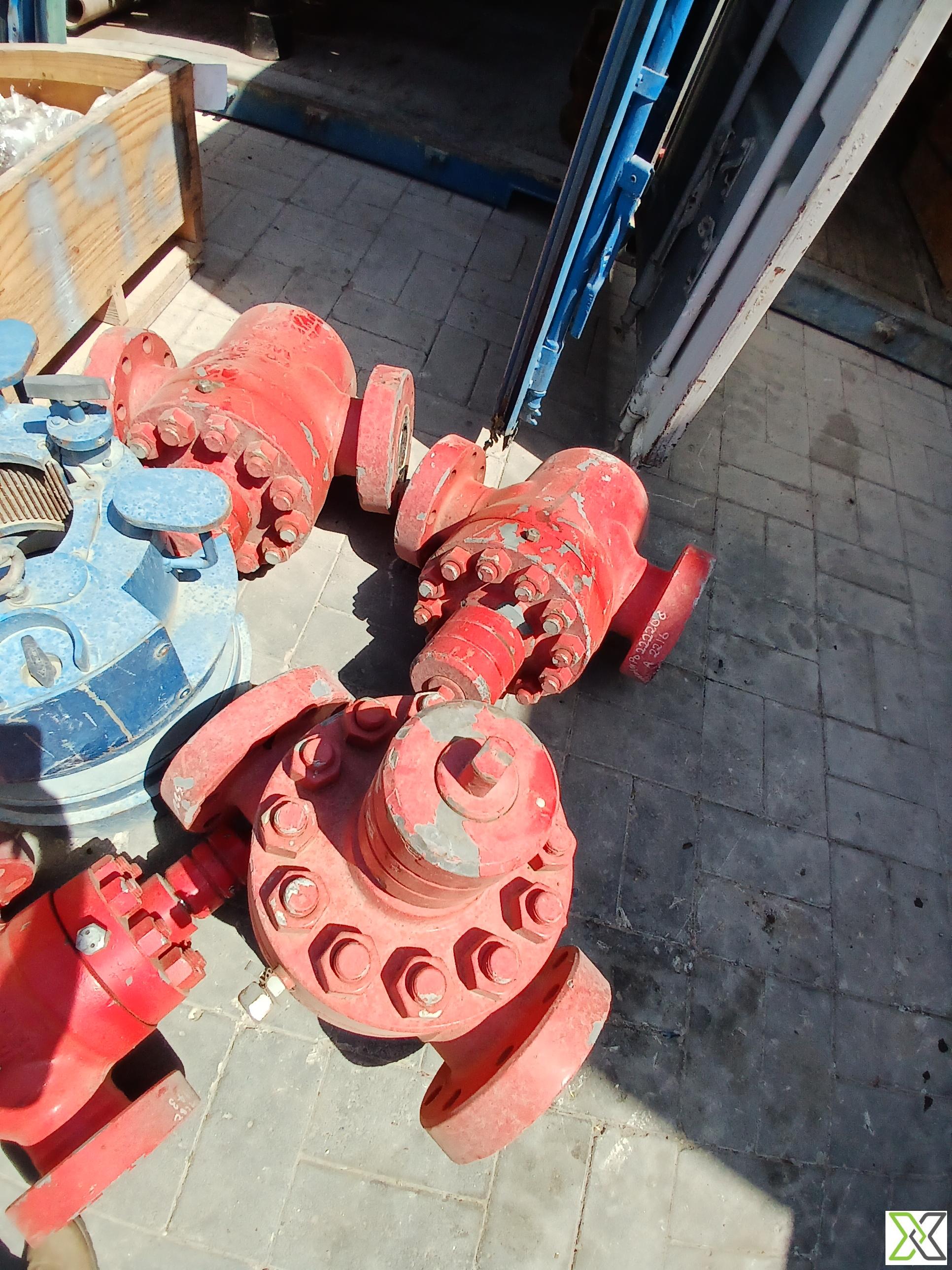

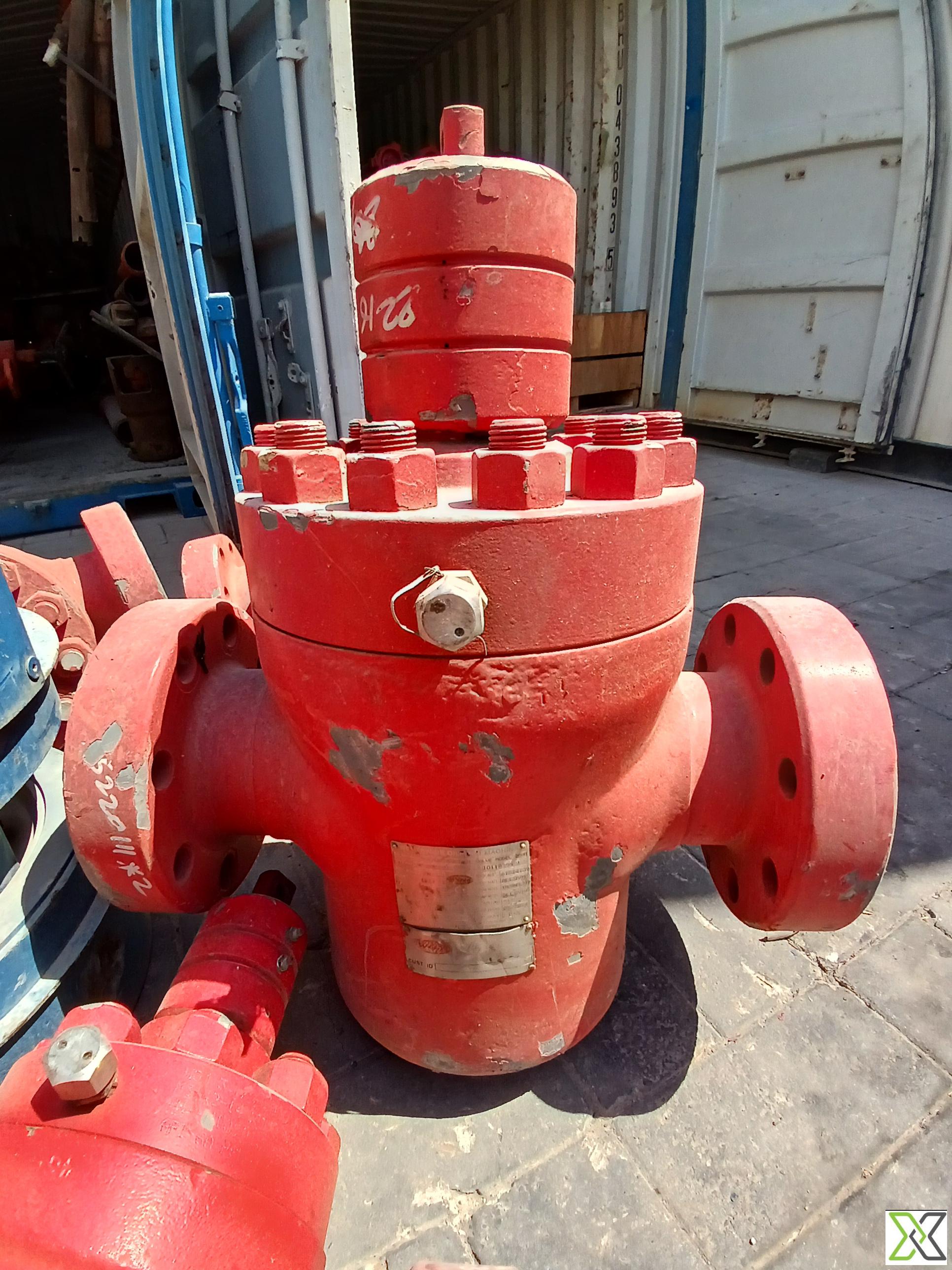

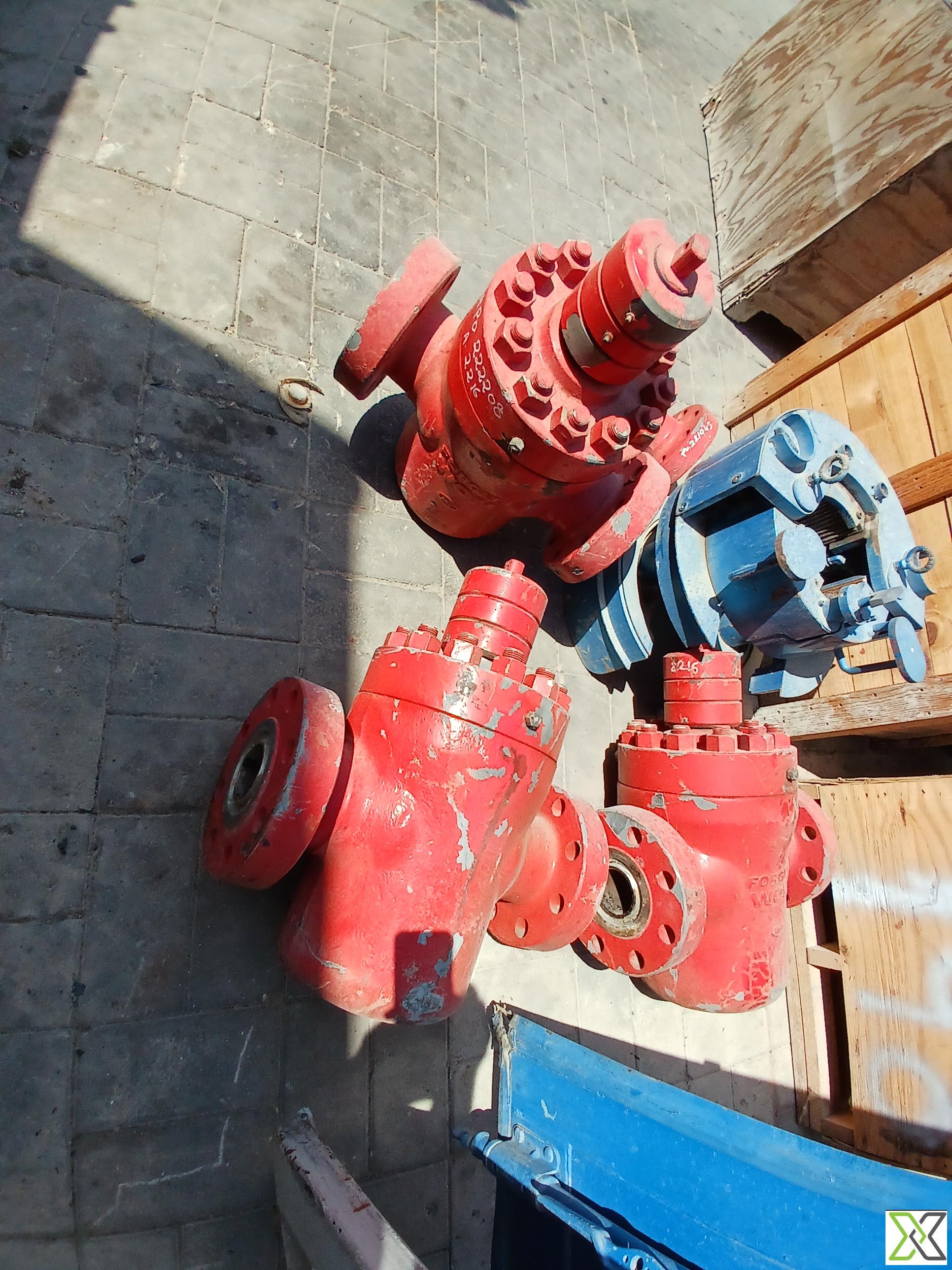

WOM 3 1/16" 15K Gate Valve (Model 220M)

ReflowX SKU: REF-365

Product Details

Quantity

3
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Worldwide Oilfield Machine (WOM)
Equipment code

Get Quotation Whatsapp

Short Description

🛠️ Equipment Overview Manufacturer: Worldwide Oilfield Machine (WOM) Description: 3 1/16" – 15K Gate Valve Model: 220M Tagline: High-pressure manual gate valve used in well control systems

Description

Specifications

General Information

Manufacturer: Worldwide Oilfield Machine (WOM)

Model: 220M

Description: High-Pressure Manual Gate Valve for Well Control Systems

Size: 3 1/16 inches

Pressure Rating: 15,000 PSI (1,034 Bar)

Valve Type: Manual Gate Valve

Design & Construction

Body Material: High-Strength Alloy Steel (AISI 4130)

Gate Material: Inconel-Coated Alloy Steel for Corrosion & Wear Resistance

Stem Material: Inconel for High-Pressure & Temperature Resistance

Seat Material: Elastomer Seals for Tight Shutoff

End Connection: RTJ (Ring-Type Joint) Flanged

Trim Specification: API 6A EE-NL

Performance & Standards

Pressure Rating: 15,000 PSI (1,034 Bar)

Temperature Rating: -20°F to 250°F (-29°C to 121°C)

API & ISO Compliance:

API 6A / ISO 10423 (Wellhead & Christmas Tree Equipment)

PSL (Product Specification Level): 3

PR (Performance Requirement): 2

Operation Type: Manual Handwheel Operation

Features & Benefits

✅ API 6A & ISO 10423 Compliant for Oil & Gas Well Control Systems
✅ 15,000 PSI Rating for High-Pressure Applications
✅ Corrosion-Resistant Inconel Components for Harsh Environments
✅ PSL-3 & PR-2 Rated for Enhanced Durability & Reliability
✅ Manual Operation for Precise Flow Control
✅ Designed for Extreme Wellhead & Fracturing Conditions

Applications

🔹 Wellhead & Christmas Tree Systems
🔹 Hydraulic Fracturing & Stimulation Equipment
🔹 High-Pressure Flowlines & Choke Manifolds
🔹 Drilling & Production Operations

🛠️ Equipment Overview

Manufacturer: Worldwide Oilfield Machine (WOM)
Description: 3 1/16" – 15K Gate Valve
Model: 220M
Tagline: High-pressure manual gate valve used in well control systems

📋 Nameplate Specifications

Assembly P/N: WM1980TMPFL

Serial Number: 10118393-1

Valve Size: 3 1/16"

Pressure Rating: 15,000 PSI

Temperature Class: P – Up to 250°F

Material Class: DD

Performance Rating: PR2

Product Specification Level (PSL): 3

API/ISO: API 6A / ISO 10423

Body Material: AISI 4130

Gate Material: Alloy Steel

Stem Material: Inconel 718

Seat Material: Elastomer

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

ISO 15926 Pt 4	10554
Model Number	220M
Color	Red
ISO 15926 Pt 4	10554
PCA RDS Code	RDS292589
CFIHOS ID	CFIHOS-30000660
IFC Class	IfcValve
Failure Action	last set position
Nominal Diameter	3-1/16"
Normal Operating Pressure	15,000 PSI
Normal Operating Temperature	–60°C to +121°C
Piping Class	API 6A 6BX
UNSPSC Code	40141600
